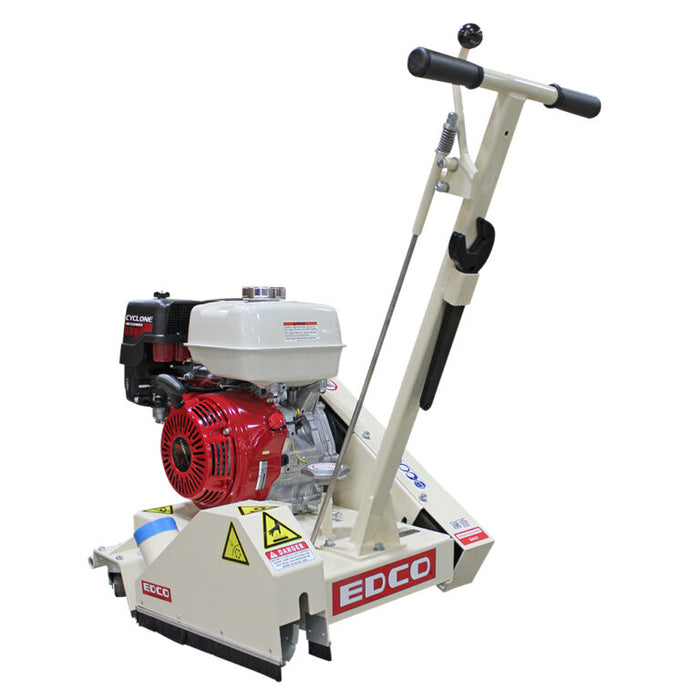

- Maximum depth of cut is 1″
- Caster wheels allows operator to follow any random crack pattern
- Combination depth control knob and engage/disengage lever allow exact depth cutting
- Standard with dual 3″ vac ports for dry cutting
- Optional straight cutting wheel kit for straight cuts or joint cleaning using an 8″ wire wheel
SPECIFICATIONS
| Specification | C-10G (Gasoline) | C-10E (Electric, 1-phase) | C-10E (Electric, 3-phase) |
|---|---|---|---|
| Model # | C-10G | C-10E | C-10E (3-phase) |
| Part # | 49600 | 49700 | 49400 |
| Engine / Motor | Gasoline | Electric | Electric |
| Phase | — | Single-Phase | 3-Phase |
| Amps | — | 19.8 A | 6 / 12 A |
| RPMs | 6,000 | 5,750 | 5,750 |
| Length | 40 in (1,016 mm) | 40 in (1,016 mm) | 37.5 in (953 mm) |
| Width | 21.5 in (546 mm) | 21.5 in (546 mm) | 21.5 in (546 mm) |
| Height | 38 in (965 mm) | 38 in (965 mm) | 38 in (965 mm) |
| Weight | 194 lbs (88.0 kg) | 192 lbs (87.1 kg) | 192 lbs (87.1 kg) |
| Max Cord Length | — | 100 ft, 10 Gauge | — |
SHIPPING & SUPPORT
This product ships directly from EDCO U.S. manufacturing facility. Standard lead time is 5–7 business days to ship.
Have questions or need help choosing the right size or accessories?
Contact us at sales@trackram.com or call (307) 312-9468 — our team is here to help.
