Diamond Products M-5 Heavy Duty Quick Disconnect Core Rigs

Diamond Products M-5 Heavy Duty Quick Disconnect Core Rigs

SKU 47175
by Diamond Products
$5,100.00 - $6,991.00
$6,991.00
$5,100.00 - $6,991.00
$6,991.00

AUTHORIZED DEALER

✓ Full Manufacturer Warranty

✓ FREE Ground Shipping

✓ No Sales Tax Outside Wyoming

Rig Type: Drill Rigs w/ Vacuum Pump
Motor/Engine Power: 23 Amp Weka DK22

ESTIMATED DELIVERY TIME

Order today for delivery in 7-10 business days.

Request a quote

The M-5 Heavy Duty Quick Disconnect Core Rig is built to handle large-diameter core drilling with strength and flexibility. It offers the capacity to work with large cores (up to 12″ standard, 20″ with spacers), yet retains portability and quick setup thanks to its quick disconnect motor mount. Whether used for wet or dry coring, anchor or vacuum base work, or even hydraulic motor applications, this rig delivers rugged performance. Its hardy construction and versatile setup make it suitable for demanding job sites where both power and convenience matter.

FEATURES & BENEFITS

  • Quick release motor mount
  • 4-spoke sliding handle (can be used on right or left)
  • Positive carriage lock
  • 2-1/2” x 3” extruded aluminum light weight column (mast) that is hard anodized to prevent wear

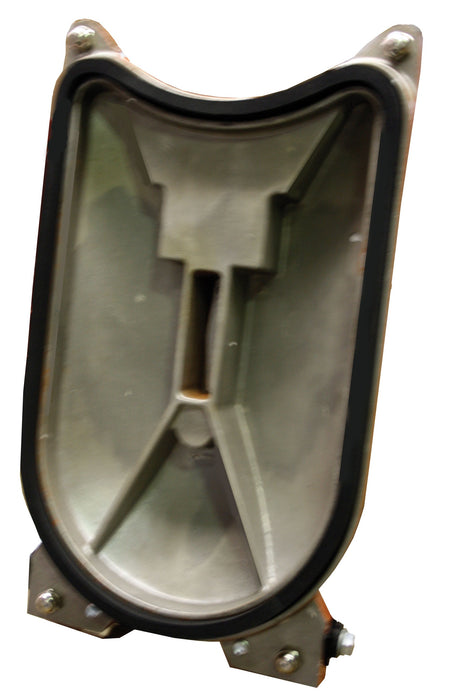

  • Quick release vacuum button
  • Top carrying handle (ceiling jack available)
  • Large bit capacity in a smaller rig system
  • Allows for mounting hydraulic motors

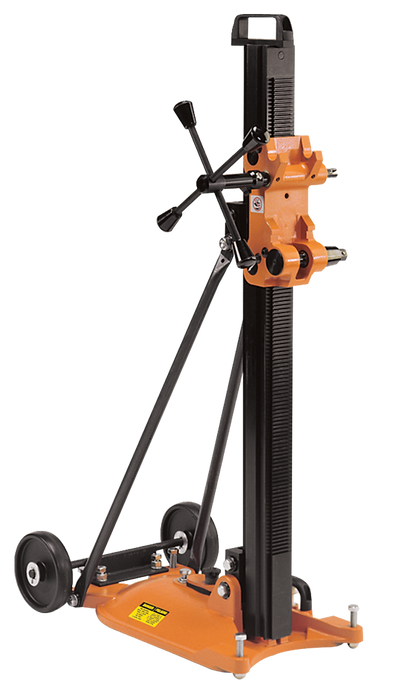

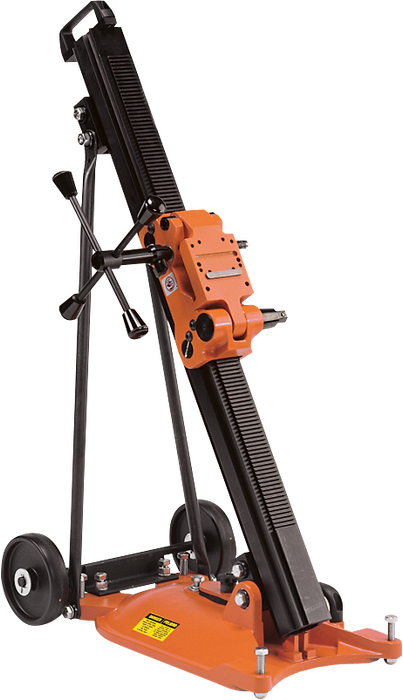

  • Angle stand to drill up to 45°
  • Double column support for increased stability
  • Easily adjustable slide bearings

SPECIFICATIONS

Engine/Motor Model Motor/Engine Power Engine/Motor Make Motor RPM Rig Type Part Number Catalog Number
DK22 23 amp, 110 volt Weka 300/640/960 Complete rig with add-on vacuum base and vacuum pump 4220001 47175
DK22S 23 amp, 110 volt Weka 420/880/1300 Complete rig with add-on vacuum base and vacuum pump 4220002 49581
CB744 25 amp, 110 volt Core Bore 385/530/975/1340 Complete rig with add-on vacuum base and vacuum pump 4245110 81063
DK22 11 Amp Weka DK22 (230V) Weka 300/640/960 Complete rig with add-on vacuum base and vacuum pump 4220010 62089
DK22S 11 Amp Weka DK22S (230V) Weka 420/880/1300 Complete rig with add-on vacuum base and vacuum pump 4220011 49825
DK22 23 amp, 110 volt Weka 300/640/960 Complete rig without vacuum pump 4220017 70410
DK22S 23 amp, 110 volt Weka 420/880/1300 Complete rig without vacuum pump 4220018 70564
CB744 25 amp, 110 volt Core Bore 385/530/975/1340 Complete rig without vacuum pump 4245108 81064
DK22 11 Amp Weka DK22 (230V) Weka 300/640/960 Complete rig without vacuum pump 4220025 10187
DK22S 11 Amp Weka DK22S (230V) Weka 420/880/1300 Complete rig without vacuum pump 4220026 84682



SHIPPING & SUPPORT

This product ships directly from Diamond Products U.S. manufacturing facility. Standard lead time is 5–7 business days to ship.
