Diamond Products CC8574DD Rider Saw

Diamond Products CC8574DD Rider Saw

SKU 78895
by Diamond Products
$117,227.00 - $124,212.00
$117,227.00
$117,227.00 - $124,212.00
$117,227.00

AUTHORIZED DEALER

✓ Full Manufacturer Warranty

✓ FREE Ground Shipping

✓ No Sales Tax Outside Wyoming

Blade Capacity: 14”

ESTIMATED DELIVERY TIME

Order today for delivery in 7-10 business days.

Request a quote

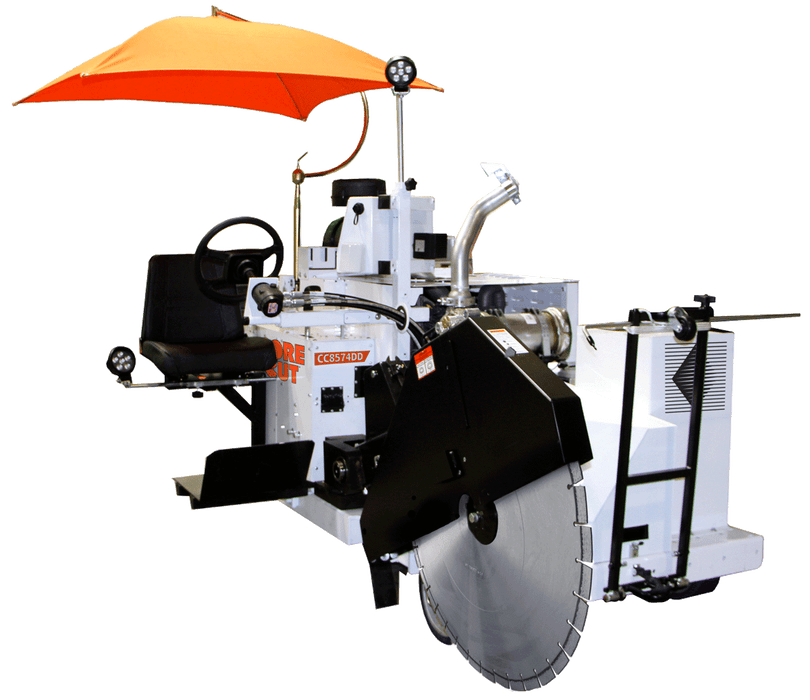

A high-production, ride-on saw designed for deep cuts, durability, and operator comfort. Built to handle large blade capacities with precision and rugged performance suited for road-work, industrial slab cutting, and other heavy-duty applications.

14" to 60" Blade Capacity

FEATURES & BENEFITS

  • Redesigned frame for improved rigidity and strength
  • Engine and hydraulic cooler work off of the engine-mounted fan
  • Coolers located at the rear of the saw to reduce fouling
  • Reservoir with clean out access
  • Infinitely variable blade speed
  • Programmable depth stop
  • Updated rear drive motor with increased load capacity, higher top speed, integral parking brake
  • Steering actuator for improved control
  • Positive neutral lock for wheel drive
  • Large diameter front and rear wheels for better traction
  • Trailers itself up to a 12 degree incline
  • Sauer-Danfoss & Parker blade drive hydraulic components
  • Poclain & Parker wheel drive components

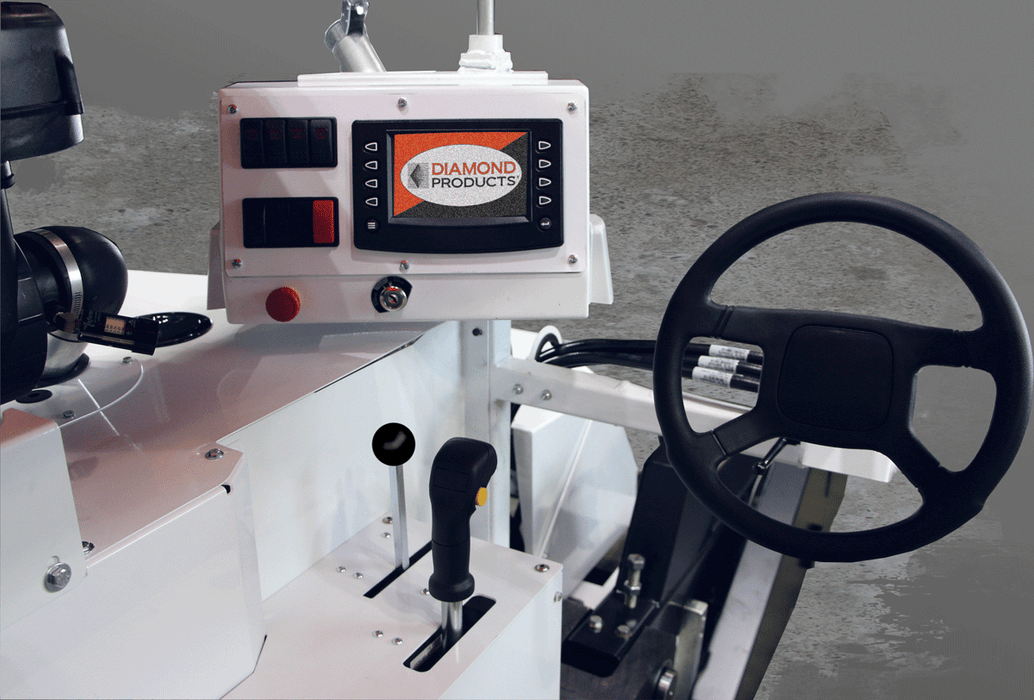

Digital Interface (7"):

  • Engine and blade speed
  • Engine and hydraulic fluid temperature
  • Fuel level
  • Hydraulic low level and blade over speedwarning

SPECIFICATIONS

Max Depth of Cut w/ 14" Blade  3-3/4"
Max Depth of Cut w/ 20" Blade  6-3/4"
Max Depth of Cut w/ 26" Blade  9-3/4"
Max Depth of Cut w/ 30" Blade  11-3/4"
Max Depth of Cut w/ 36" Blade  14-3/4"
Max Depth of Cut w/ 42" Blade  16-3/4"
Max Depth of Cut w/ 48" Blade  19-3/4"
Max Depth of Cut w/ 54" Blade  22-3/4"
Max Depth of Cut w/ 60" Blade  23-3/4"
Engine Model  Deutz 2.9 Turbo L4 Tier 4 Final
Blade Shaft Diameter  2-1/2"
Arbor Size  1" w/single drive pin
Blade Shaft Bearings  Precision ball
Blade Shaft Drive  Hydraulic motor
Blade Mounting  Right side
Blade Raise/Lower  Hydraulic, solenoid valve controlled
Transmission  Variable displacement hydraulic pump & motor
Air Filter  8" Donaldson Alexin
Fuel Capacity  9.5 gallons
Includes

 Hour Meter, Tachometer, Telescoping Front Pointer, Adjustable Depth Stop, Cup Holder, Quick Disconnect Blade Flanges



Blade Capacity Power Source Part Number Catalog Number
14” Diesel 5803300 78895
20" Diesel 5803301 78928
26” Diesel 5803302 78949
30” Diesel 5803303 78951
36” Diesel 5803304 78995
42” Diesel 5803305 78997
48” Diesel 5803306 79001
54” Diesel 5803307 79020
60” Diesel 5803308 79139



SHIPPING & SUPPORT

This product ships directly from Diamond Products U.S. manufacturing facility. Standard lead time is 5–7 business days to ship.

Have questions or need help choosing the right size or accessories?
Contact us at sales@trackram.com or call (307) 312-9468  — our team is here to help.
