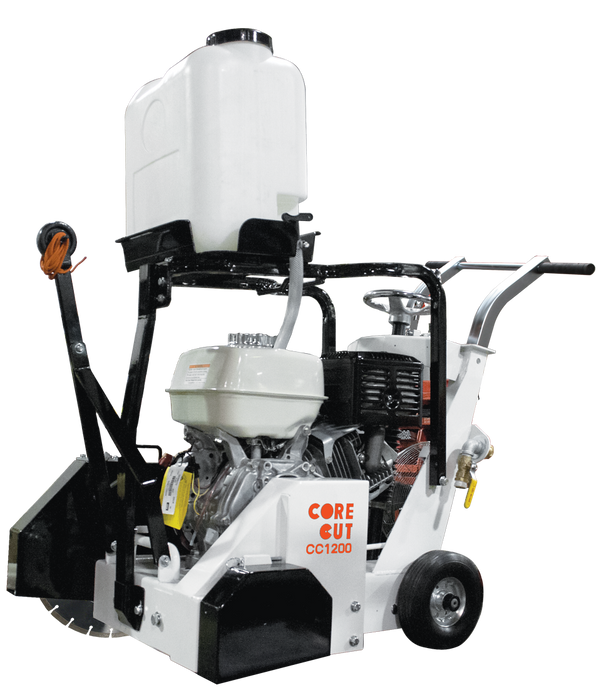

Diamond Products CC1200XL Small Walk-Behind Saw

Diamond Products CC1200XL Small Walk-Behind Saw

SKU 32360
by Diamond Products
$2,611.00 - $3,990.33
$3,829.53
$2,611.00 - $3,990.33
$3,829.53

AUTHORIZED DEALER

✓ Full Manufacturer Warranty

✓ FREE Ground Shipping

✓ No Sales Tax Outside Wyoming

Blade Capacity: 14”
Engine/Motor Model: GX270

ESTIMATED DELIVERY TIME

Order today for delivery in 7-10 business days.

Request a quote

A compact and durable gas-powered walk-behind saw tailored for general contractors, perfect for precise pavement cutting in confined environments while still offering robust performance and operator comfort.

14" - 18" Blade Capacity

FEATURES & BENEFITS

  • Heavy duty design, but light weight enough for two people to lift and carry
  • Cyclone air filter (Honda® models)
  • Easy to read built-in depth indicator
  • Slip-on blade guard
  • Heavy duty handles do not rattle like competitor handles
  • Left or right hand sawing
  • Single ribbed belt
  • Water tank and lifting bale (tank optional-for dust suppression)

SPECIFICATIONS

Maximum depth of cut with 14” blade:  4-5/8”
Maximum depth of cut with 18” blade:   6-5/8”
Blade shaft RPM:  2,600
Blade shaft diameter:  1-1/4”
Arbor Size:  1” with single drive pin
Blade mounting:  Right or left
Blade raise/lower:  Precision screw feed
Handle bars:  Adjustable
Depth indicator:  Standard
  • ◊ Briggs 2100 Series models include a Diamond Products 3-year extended warranty. Horsepower and Torque as rated by the engine manufacturer.
Blade Capacity Engine/Motor Model Motor/Engine Power Engine/Motor Make Power Source Part Number Catalog Number
14” GX270 8.5 HP, 14.1 Torque (lbs.-ft.) Honda® Gas 5801092 32360
14" GX390 11.7 HP, 19.5 torque (lbs.-ft.) Honda® Gas 5801093 32363
14” 2100 420cc, 21 torque (lbs.-ft.) Briggs® ◊ Gas 5801094 32365
18" GX270 8.5 HP, 14.1 Torque (lbs.-ft.) Honda® Gas 5801095 32424
18" GX390 11.7 HP, 19.5 torque (lbs.-ft.) Honda® Gas 5801097 32453
18" 2100 420cc, 21 torque (lbs.-ft.) Briggs® ◊ Gas 5801098 32454



SHIPPING & SUPPORT

This product ships directly from Diamond Products U.S. manufacturing facility. Standard lead time is 5–7 business days to ship.
