Diamond Products CC6561GK Gas Walk Behind Saw

Diamond Products CC6561GK Gas Walk Behind Saw

SKU 75242
by Diamond Products
$44,024.00 - $50,376.00
$44,024.00
$44,024.00 - $50,376.00
$44,024.00

AUTHORIZED DEALER

✓ Full Manufacturer Warranty

✓ FREE Ground Shipping

✓ No Sales Tax Outside Wyoming

Blade Capacity: 14”
Transmission Option: Single Speed

ESTIMATED DELIVERY TIME

Order today for delivery in 7-10 business days.

Request a quote

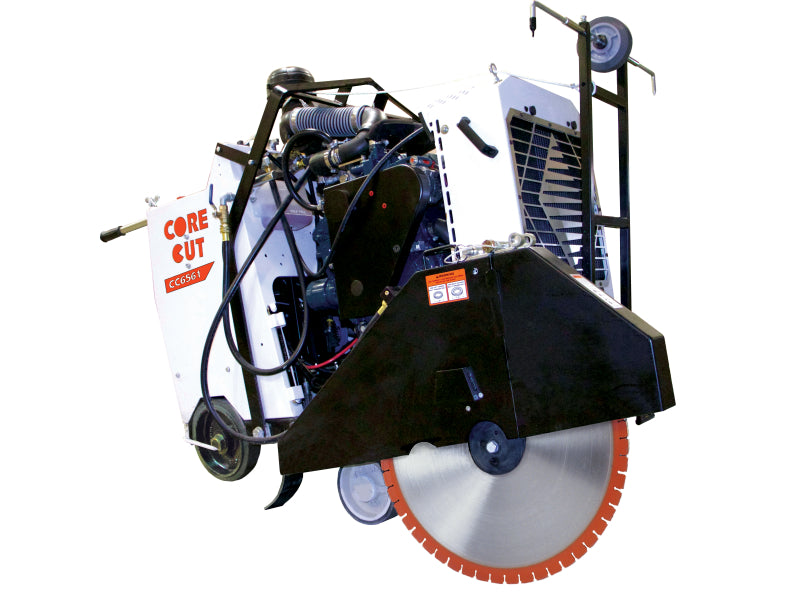

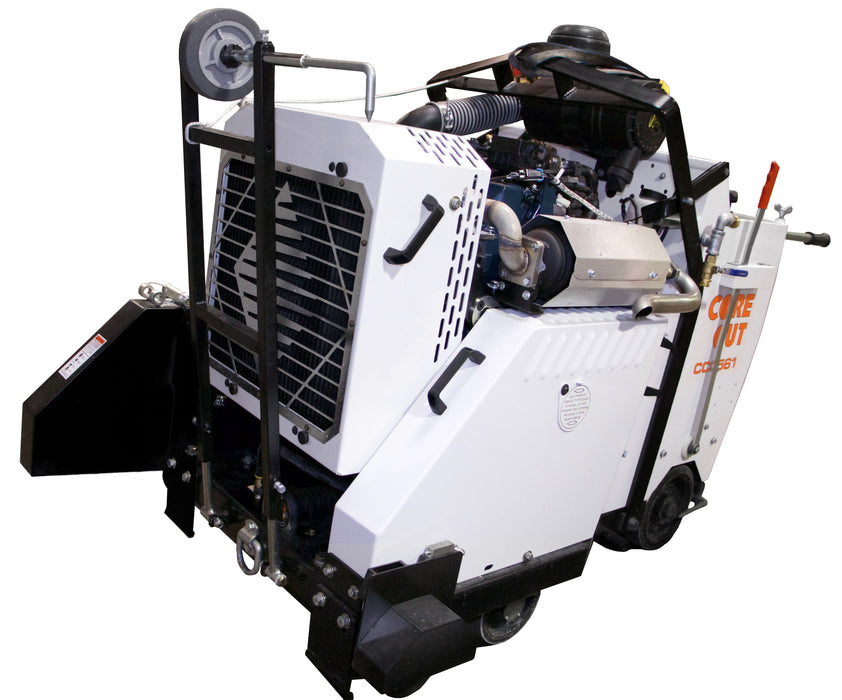

A robust, professional-grade walk-behind concrete and asphalt saw offering exceptional power and control. The CC6561GK combines a high-performance gasoline engine with advanced features for precision cutting in demanding jobsite environments.

Power, Reliability and Convenience

14”-42” Blade Capacity

FEATURES & BENEFITS

  • Liquid-cooled Kubota® gasoline WG2503, spark ignited industrial 61HP engine that is fully complaint with EPA regulations
  • Self-propelled Eaton Model 10 transmission
  • Fits through a 36” door frame
  • Strongest frame on the market
  • 4 stage air filter system
  • Developed on an industrial diesel engine platform
  • Very low noise and vibration
  • Electronic fuel injection
  • Modern computer engine controls (same as the CC6571D).
  • 3-way catalytic muffler that meets the latest EPA & CARB emission requirements
  • Specifications similar to CC6549D, but with more power and less noise, vibration and fumes

SPECIFICATIONS

Maximum depth of cut with 14” blade:  4-1/2” (3-3/4”-3-speed)
Maximum depth of cut with 20” blade:  7-1/2” (6-3/4”-3-speed)
Maximum depth of cut with 26” blade:  10-1/2” (9-3/4”-3-speed)
Maximum depth of cut with 30” blade:  11-3/4” (11-3/4”-3-speed)
Maximum depth of cut with 36” blade:  14-3/4” (14-3/4”-3-speed)
Maximum depth of cut with 42” blade:  17-3/4” (17-3/4”-3-speed)
Blade shaft diameter:  2”
Arbor Size:  1” with drive pin
Blade shaft drive:  10 belt
Blade mounting:  Right or left
Blade raise & lower:  Electro-hydraulic pump
Transmission:  Eaton model 10
Drive speed:  0-200 feet/minute
Air filter:  4 stage
Fuel capacity:  9 gallons



Includes:

  • Blade shaft tachometer
  • Hour meter
  • Frame lift
  • Telescoping front pointer
  • Parking brake
  • Cutting depth indicator
  • Quick disconnect blade flanges
  • Oil bath blade shaft
Blade Capacity Motor/Engine Power Part Number Catalog Number
14” 61 HP, Single Speed 5801180 75242
20” 61 HP, Single Speed 5801181 75241
26” 61 HP, Single Speed 5801182 48097
30” 61 HP, Single Speed 5801183 74109
36” 61 HP, Single Speed 5801184 75243
42” 61 HP, Single Speed 5801185 75245
14” 61 HP, Three Speed 5801190 75246
20” 61 HP, Three Speed 5801191 75249
26” 61 HP, Three Speed 5801192 75251
30” 61 HP, Three Speed 5801193 75252
36” 61 HP, Three Speed 5801194 75254
42” 61 HP, Three Speed 5801195 75255



SHIPPING & SUPPORT

This product ships directly from Diamond Products U.S. manufacturing facility. Standard lead time is 5–7 business days to ship.

Have questions or need help choosing the right size or accessories?
Contact us at sales@trackram.com or call  (307) 312-9468 — our team is here to help.
