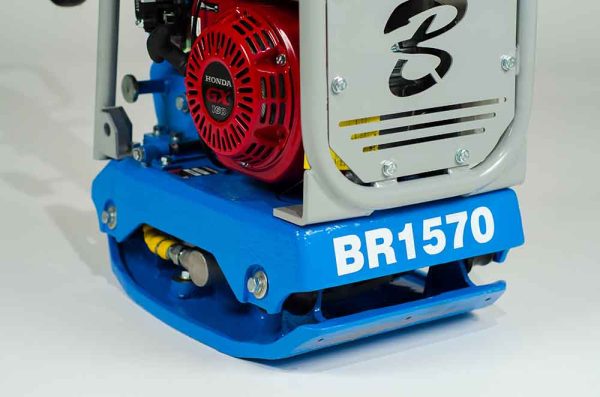

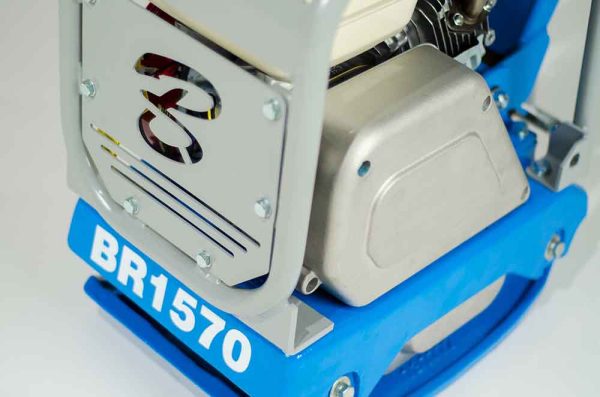

Bartell Global BR1570 Compaction

Bartell Global BR1570 Compaction

SKU BR1570
by Bartell Global
$3,263.25 - $3,263.25
$3,263.25
$3,263.25 - $3,263.25
$3,263.25

AUTHORIZED DEALER

✓ Full Manufacturer Warranty

✓ FREE Ground Shipping

✓ No Sales Tax Outside Wyoming

ESTIMATED DELIVERY TIME

Order today for delivery in 7-10 business days.

Request a quote

The Bartell BR1570 is our smallest and most versatile reversible model. It is so compact and cost-effective, you could easily upgrade to higher production rates by going reversible, without increasing your investment.

The fully hydraulic reversing mechanism sets the Bartell line of reversible compactors apart from the competition, providing more flexible maneuverability for forward, backward, and spot-on compaction.

FEATURES & BENEFITS

  • Cast aluminum throttle lever for professional and durable control
  • Integrated lifting bale for safe loading and unloading
  • Full roll cage and cast aluminum belt cover for clutch and engine protection
  • Ductile iron bases for increased strength
  • Retractable wheels flip down for built-in mobility
  • Optional urethane mat protects pavers and slabs from scratches and breakage
  • Full speed in both forward and reverse
  • Specialized for compacting sand, trench, and patching

SPECIFICATIONS

Specification Value

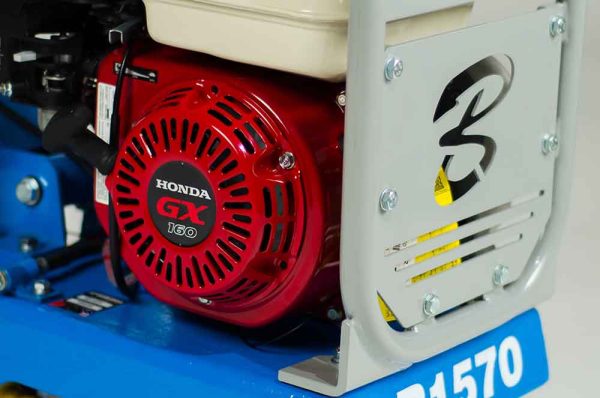

Engine Type Honda GX160
Power Output 4.8 hp (3.6 kW)
Compaction Force 3,461 lbf (≈ 15 kN / 1,570 kgf)
Max Travel Speed 65 ft/min (≈ 20 m/min)
Dimensions (L × W × H) 35″ × 14″ × 35″ (88 cm × 35 cm × 88 cm)
Operating Weight 193 lb (≈ 87.5 kg)
Plate Size 14″ × 19″ (35 cm × 48 cm)



SHIPPING & SUPPORT

This product ships directly from Bartell Global U.S. manufacturing facility. Standard lead time is 5–7 business days to ship.

Have questions or need help choosing the right size or accessories?
Contact us at sales@trackram.com or call (307) 312-9468  — our team is here to help.
