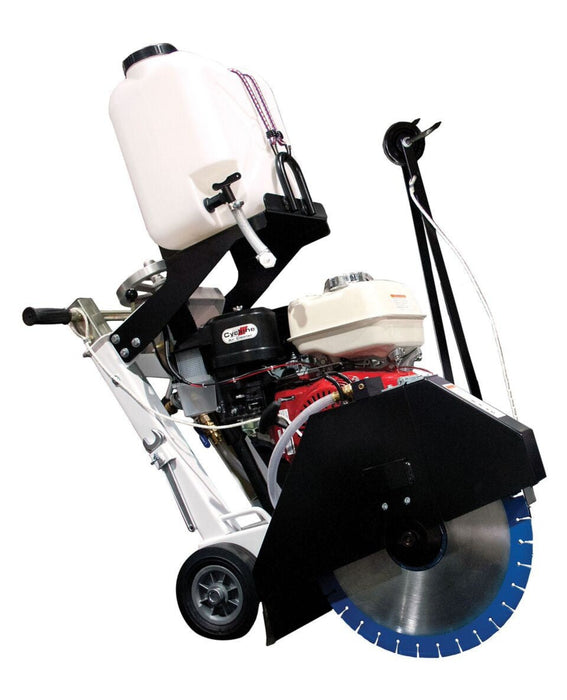

Diamond Products CC1300XL Small Walk-Behind Saw

Diamond Products CC1300XL Small Walk-Behind Saw

SKU
by Diamond Products
$4,114.00 - $9,446.00
$4,822.00
$4,114.00 - $9,446.00
$4,822.00

AUTHORIZED DEALER

✓ Full Manufacturer Warranty

✓ FREE Ground Shipping

✓ No Sales Tax Outside Wyoming

Blade Capacity/Engine Power: 14" 8.5 HP 14.1 Torque (lbs.-ft.)

ESTIMATED DELIVERY TIME

Order today for delivery in 7-10 business days.

Request a quote

The CC1300XL Small Walk-Behind Saw is built for general contractors needing a compact but full-featured concrete/asphalt saw. With a blade range of 14″ to 20″, it delivers deep cuts with precision in a smaller form factor. Designed with a heavy-duty frame, optional power sources (gas, electric, hydraulic), and easy control features, the CC1300XL balances portability with the strength and durability needed for demanding job sites. Its versatility makes it ideal for driveways, sidewalks, light commercial repairs, and maintenance work.

FEATURES & BENEFITS

  • Heavy duty frame design
  • Cyclone air filter (Honda® models)
  • Easy to maneuver push drive
  • Four position heavy duty handles offer no slack and don't rattle like other adjustable handles
  • Through rear axle for added strength
  • Solid sealed and self aligning blade shaft bearings
  • Slip-on blade guard for easy blade access
  • Three V-belts for extra power delivery to the blade shaft
  • Left or right side sawing
  • Optional water tank available for dust suppression

SPECIFICATIONS

Maximum depth of cut with 14" blade: 4-5/8"
Maximum depth of cut with 18" blade:   6-5/8"
Maximum depth of cut with 20" blade:  7-5/8"
Blade shaft RPM:  2,600
Blade shaft diameter:   1-1/4"
Arbor size:  1" with single drive pin
Blade mounting:  Right or left
Blade raise/lower: Precision screw feed
Handle bars:   Adjustable
 Parts List # (Gas):  1801801
 Parts List # (Electric)  1801809
 Operator Manual #:  1801459
  • ◊ Briggs 2100 Series models include a Diamond Products 3-year extended warranty. Horsepower and Torque as rated by the engine manufacturer.
Blade Capacity Engine/Motor Model Motor/Engine Power Engine/Motor Make Power Source Part Number Catalog Number
14" GX270 8.5 HP, 14.1 Torque (lbs.-ft.) Honda® Gas 5800575 75066
14" GX390 11.7 HP, 19.5 torque (lbs.-ft.) Honda® Gas 5800576 75067
14" 2100 420cc, 21 torque (lbs.-ft.) Briggs® ◊ Gas 5801117 61491
14" N/A 5 HP-1PH, 230V Baldor® Electric 5800577 75068
14" N/A 5 HP-3PH, 230V Baldor® Electric 580057A 99977
14” N/A 5 HP, -3PH, 480V Baldor® Electric 5800578B 26493
14" GX390 upcut 11.7 HP, 19.5 torque (lbs.-ft.) Honda® Gas 5800871 27131
18" GX270 8.5 HP, 14.1 Torque (lbs.-ft.) Honda® Gas 5800579 75070
14" 2100 upcut 420cc, 21 torque (lbs.-ft.) Briggs® ◊ Gas 5801118 61493
18" GX390 11.7 HP, 19.5 torque (lbs.-ft.) Honda® Gas 5800571 69995
18" 2100 420cc, 21 torque (lbs.-ft.) Briggs® ◊ Gas 5801116 61494
18" N/A 5 HP-1PH, 230V Baldor® Electric 5800580 75071
18" N/A 5 HP-3PH, 230V Baldor® Electric 5800581A 93652
18" N/A 5 HP, -3PH, 480V Baldor® Electric 5800581B 97080
18" GX390 upcut 11.7 HP, 19.5 torque (lbs.-ft.) Honda® Gas 5800872 26751
20" N/A 10 HP-3PH,230V Baldor® Electric 5800589A 93810
18" 2100 upcut 420cc, 21 torque (lbs.-ft.) Briggs® ◊ Gas 5801119 61496
20" N/A 10 HP-3PH,460V Baldor® Electric 5800589B 93220
20" N/A 10 HP-3PH,230V/460V Baldor® Electric 5800985 57763
20" GX390 11.7 HP, 19.5 torque (lbs.-ft.) Honda® GAS 5800723 21855
20" N/A 15 GPM Danfoss® Hydraulic 5800724A 37387
20" N/A 20 GPM Danfoss® Hydraulic 5800724B 50852
20" N/A 25 GPM Danfoss® Hydraulic 5800724C 37388



SHIPPING & SUPPORT

This product ships directly from Diamond Products U.S. manufacturing facility. Standard lead time is 5–7 business days to ship.

Have questions or need help choosing the right size or accessories?
Contact us at sales@trackram.com or call (307) 312-9468   — our team is here to help.
