Diamond Products CC2500 Medium Walk Behind Saw

Diamond Products CC2500 Medium Walk Behind Saw

SKU 48413
by Diamond Products
$11,898.00 - $17,407.00
$13,959.00
$11,898.00 - $17,407.00
$13,959.00

AUTHORIZED DEALER

✓ Full Manufacturer Warranty

✓ FREE Ground Shipping

✓ No Sales Tax Outside Wyoming

Blade Size/Engine Power: 14" 15 HP 230V-3PH

ESTIMATED DELIVERY TIME

Order today for delivery in 7-10 business days.

Request a quote

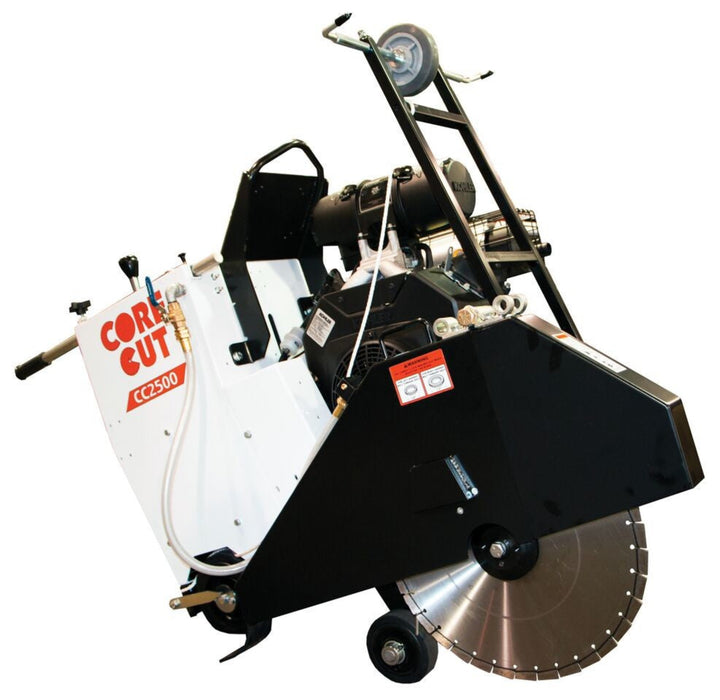

The CC2500 Medium Walk-Behind Saw delivers large-saw power in a compact, maneuverable size. Designed for contractors who need deep cuts on concrete or asphalt in jobs where bigger saws are impractical, the CC2500 offers heavy duty construction, flexibility in power source, and precise control. With blade capacities between 14″ and 26″, this saw can handle everything from pavement repair to expansion joint cutting, while providing operator comfort and durability for frequent use.

FEATURES & BENEFITS

  • Rigid high strength 3/16” steel box frame with heavy bar reinforcement
  • 2 position tilt handle bars
  • Push or self propelled drive
  • Screw feed raise and lower with optional power raise and lower
  • Cyclone air filter on gas models
  • Positive gear drive to rear axle via Eaton hydrostatic transmission

SPECIFICATIONS

Maximum depth of cut with 14” blade: 4-5/8”
Maximum depth of cut with 20” blade: 7-3/8”
Maximum depth of cut with 26” blade: 10-3/8”
Blade shaft RPM: Varies
Blade shaft diameter: 1-1/2”
Arbor size: 1” w/drive pin
Blade shaft drive: 4 belt up to 20.8HP, 5 belt for 25HP
Blade mounting: Right or Left
Transmission (self propelled only): Eaton Model 7
Drive Speed: 0-130 feet/min
Fuel Capacity (gas models): 5 gallons

INCLUDES:

Electric Start (20-25 HP models) Low Oil Alert Tach/Hour Meter (20-25 HP models) Frame Lift Quick Disconnect Blade Flanges Cutting Depth Indicator Telescoping front pointer

Blade Capacity Motor/Engine Power Electric Start Power Source Engine/Motor Make/Model Remote Cyclone Air Cleaner Right or Left Hand Part Number Catalog Number
14" 15 HP, 230V-3PH N/A Electric Baldor® No N/A 5800400A 48413
14” 15 HP, 460V-3PH N/A Electric Baldor® No N/A 5800400B 99980
20" 15 HP, 230V-3PH N/A Electric Baldor® No N/A 5800401A 98001
20" 15 HP, 460V-3PH N/A Electric Baldor® No N/A 5800401B 93694
26” 15 HP, 230V-3PH N/A Electric Baldor® No N/A 5800402A 94379
26” 15 HP, 460V-3PH N/A Electric Baldor® No N/A 5800402B 94409
14" 20.8 HP, 35.6 torque (lbs.-ft.) Yes Gas Honda® GX630 Yes N/A 5800406 48418
20" 20.8 HP, 35.6 torque (lbs.-ft.) Yes Gas Honda® GX630 Yes N/A 5800407 47164
26” 20.8 HP, 35.6 torque (lbs.-ft.) Yes Gas Honda® GX630 Yes N/A 5800408 48419
14" 25 HP-25 GPM @ 2000 PSI Yes Hydraulic Webster® No N/A 5800489 48426
20" 25 HP-25 GPM @ 2000 PSI Yes Hydraulic Webster® No N/A 5800490 48427
26” 25 HP-25 GPM @ 2000 PSI Yes Hydraulic Webster® No N/A 5800491 48428
14" 25 HP, 41.2 Torque (lbs.-ft.) Yes Gas Kohler® Command CH742 Yes N/A 5800597 79036
20" 25 HP, 41.2 Torque (lbs.-ft.) Yes Gas Kohler® Command CH742 Yes N/A 5800598 79037
26” 25 HP, 41.2 Torque (lbs.-ft.) Yes Gas Kohler® Command CH742 Yes Right Hand 5800599 78816
14” 25 HP EFI Yes Gasoline Honda® iGX800 EFI Yes Right Hand 5801451 108196
20" 25 HP EFI Yes Gasoline Honda® iGX800 EFI Yes Right Hand 5801452 108197
26” 25 HP EFI Yes Gasoline Honda® iGX800 EFI Yes Right Hand 5801453 108198



SHIPPING & SUPPORT

This product ships directly from Diamond Products U.S. manufacturing facility. Standard lead time is 5–7 business days to ship.

Have questions or need help choosing the right size or accessories?
Contact us at sales@trackram.com or call (307) 312-9468  — our team is here to help.
