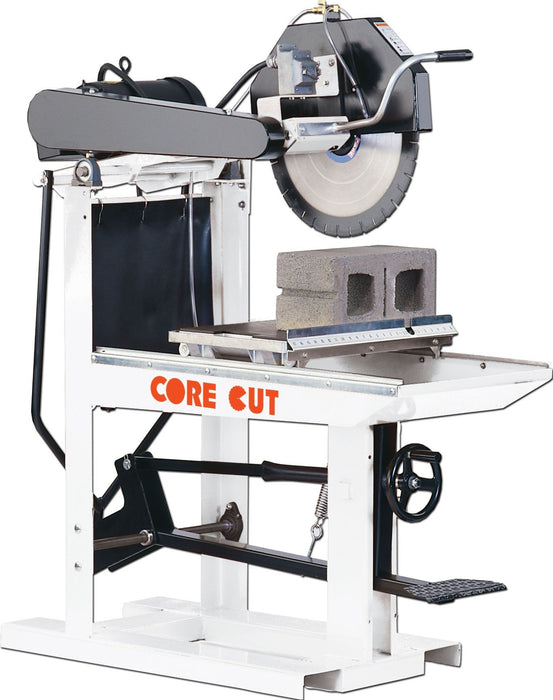

Diamond Products CC800M masonry saw with a white frame and cutting blade, designed for cutting concrete and masonry materials.

Diamond Products CC800M Block Saw

SKU 46820
by Diamond Products
$8,329.06 - $9,335.01
$8,592.27
$8,329.06 - $9,335.01
$8,592.27

✓ FREE Ground Shipping

✓ Backed by manufacturer's standard warranty

✓ Ships from distribution facility in Whites Creek, TN

✓ Built for commercial & jobsite use

ESTIMATED DELIVERY TIME

Order today for delivery in 7-10 business days.

Request a quote

A rugged, high-capacity block saw built for large masonry/block cutting operations. Designed to cut thick blocks cleanly, with strong frame construction, multiple power options, and operator-friendly controls.

FEATURES & BENEFITS

  • 24” blade cuts a 10” block in a single pass
  • Variety of power options
  • Stay level blade guard and enclosed blade shaft
  • Replaceable cart travel rails
  • Durable 3/16” steel frame
  • Includes water pump
  • Easy rolling 16” x 25” aluminum cutting cart/tray with vulcanized rubber coated non-slip top
  • Large capacity, deep tapered water tray
  • Foot pedal controlled operating head leaves the operators hands free to guide material
  • Hand wheel for quick and easy blade cutting depth adjustment
  • Enclosed cart wheels prevent damage
  • Forklift opening for easy transport
  • 2 V-belts promote efficient delivery of power to the blade
  • Open back design for rip cutting longer materials
  • Counterbalanced stay level blade guard assures the head is parallel to the cutting cart at all times

SPECIFICATIONS

Maximum Depth of Cut: 8” with 20” blade, 10” with 24” blade
Arbor Diameter: 1”
Blade Shaft Bearings: Flange block ball bearings
Blade Shaft Drive: 2 premium grip notch v-belt
Blade Raise/Lower: Counterbalanced, spring tensioned head pivots on two 1” flange block bearings
Blade Coolant: Dual spray tubes, pump fed (elecZZic models), garden hose connection (gas models)
Air Filter: 3-stage cyclone (gas models)
Fuel Capacitor: 1 gallon (gas models)
High Temp Shut-off: Included (elecZZic models)
Starter: Recoil on gas models, capacity on electric models



Blade Capacity Sawing Engine/Motor Make Motor/Engine Power Electric Start Power Source Part Number Catalog Number
20” Baldor® 5 HP-1PH, 230V No Electric 5800540 46820
20” Baldor® 5 HP-3PH, 230V No Electric 5800541A 96416
20” Baldor® 5 HP -3PH, 460V No Electric 5800541B 18533
20” Baldor® 7.5 HP-1PH, 230V No Electric 5800542 47664
20” Baldor® 7.5 HP-3PH, 230V No Electric 5800544A 96015
20” Baldor® 7.5 HP-3PH, 460V No Electric 5800544B 96336
24” Baldor® 7.5 HP-1PH, 230V No Electric 5800543 47630
24” Baldor® 7.5 HP-3PH, 230V No Electric 5800545A 97240
24” Baldor® 7.5 HP-3PH, 460V No Electric 5800545B 97000
20” Honda® GX270 8 HP, 14.1 torque (lbs.-ft.) No Gas 5800546 47024
20” Honda® GX390 11 HP, 19.5 torque (lbs.-ft.) No Gas 5800547 47047
24” Honda® GX390 11 HP, 19.5 torque (lbs.-ft.) No Gas 5800548 47046
20” Honda® GX390 11 HP, 19.5 torque (lbs.-ft.) Yes Gas 5800566 60933
24” Honda® GX390 11 HP, 19.5 torque (lbs.-ft.) Yes Gas 5800567 81160



SHIPPING & SUPPORT

Our products ship from our distribution partner, MTA Distributors, located in Whites Creek, Tennessee. Orders typically ship within 3–5 business days from the date of purchase.

Standard delivery transit time is approximately 7–10 business days from the order date, depending on destination and carrier.

Once your order has shipped, tracking information will be sent to the email address provided at checkout. You may also track the status of your shipment on our Order Tracking page. Please note that estimated delivery dates will not be available until your order has shipped and a tracking number has been issued.

Have questions or need assistance? Contact us at support@trackram.com or call (307) 312-9468.

For additional details, please review our Shipping Policy.
