Diamond Products CCH25 Circular/Plunge Wire Saw

Diamond Products CCH25 Circular/Plunge Wire Saw

SKU 74442
by Diamond Products
$9,860.00 - $21,870.00
$21,870.00
$9,860.00 - $21,870.00
$21,870.00

AUTHORIZED DEALER

✓ Full Manufacturer Warranty

✓ FREE Ground Shipping

✓ No Sales Tax Outside Wyoming

Option: CCH25 Complete Wire Saw with 22 CC Motor

ESTIMATED DELIVERY TIME

Order today for delivery in 7-10 business days.

Request a quote

The CCH25 / CCE25 Circular-Plunge Wire Saw is a high-precision saw system designed for heavy-duty circular and plunge cutting in concrete, steel, or mixed structural materials. This rugged, modular saw system is built to replace conventional drill-based methods for large diameter cutting, delivering cleaner cuts, elliptical shapes, and enhanced flexibility. Whether hydraulically driven (CCH25) or electric (CCE25), it offers minimal installation time, superior water and wire guidance, and the ability to cut both horizontally and vertically with control and safety.

FEATURES & BENEFITS

  • Hydraulic motor
  • Simple and safe in the application
  • Minimum installation time
  • Economical, replaces expensive drill bits
  • Wire sawing instead of drilling opens up new application possibilities.
  • Elliptical shaped cutouts are possible.
  • Simple tensioning of the wire
  • Precise flexible water supply

CCH25 Circular Wire Saw Information:

Minimum Diameter: 20”
Maximum Diameter: 98”
Maximum Thickness: 24”
Wire Requirement: Minimum 11 feet

Requirements:

  • 13-16 GPM Power Pack BS-2 Remote Control Unit

Features/Benefits:

  • Sturdy Design
  • Gentle Wire guidance thanks to plastic guide
  • Optimal water guidance guaranteed
  • Suitable for horizontal and vertical cuts

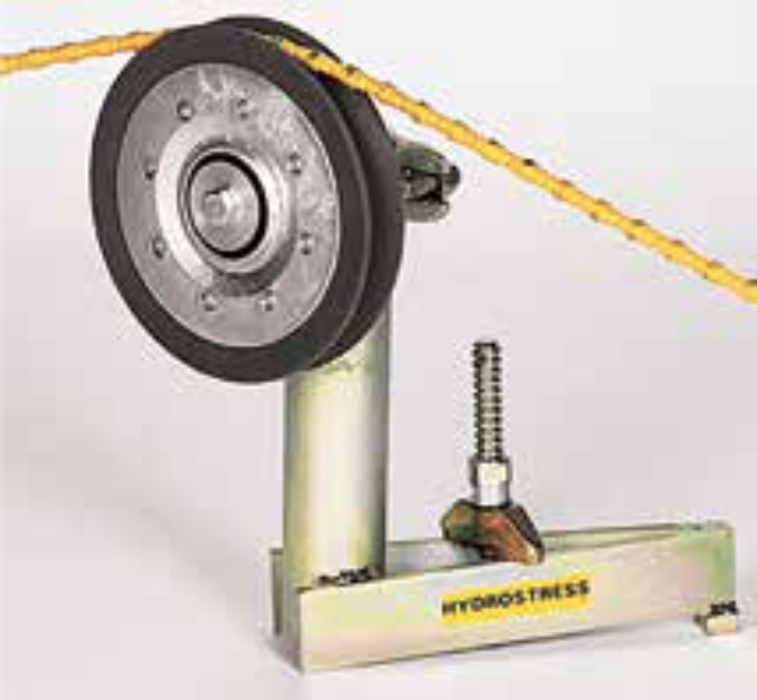

  • Swivel rollers for correct wire guidance
  • Fixed in 10” drilled hole
  • Wire secured by protective plate

SPECIFICATIONS

Description Part Number Catalog Number
CCH25 Complete Wire Saw with 22 CC Motor 5802240 74442
Remote Control Unit for Hydrostress wall saws 5800112 48601
CCE25 Kit for WSE1217 Circular Wire Saw without Main Motor or Controller/Inverter 5803026 67292



SHIPPING & SUPPORT

This product ships directly from Diamond Products U.S. manufacturing facility. Standard lead time is 5–7 business days to ship.

Have questions or need help choosing the right size or accessories?
Contact us at sales@trackram.com or call (307) 312-9468  — our team is here to help.
