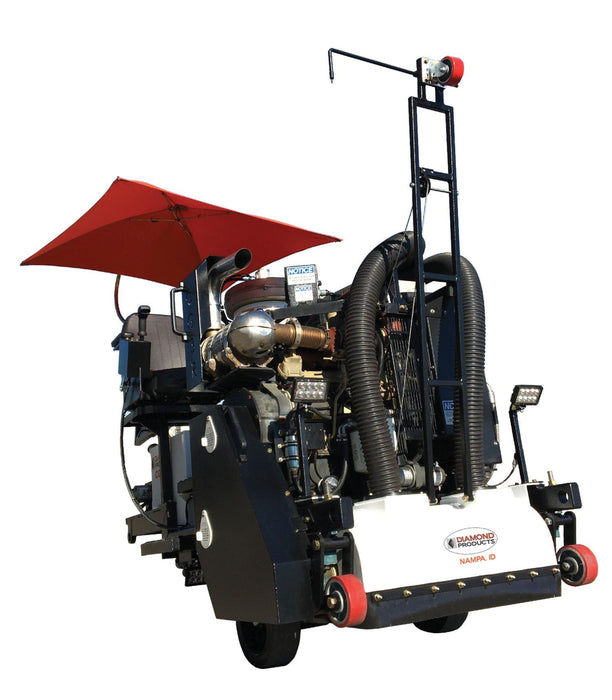

Diamond Products CG3R pavement groover showing the back view, used for grinding and grooving asphalt surfaces.

Diamond Products CG3R Pavement Groover

SKU 99357
by Diamond Products
$257,998.00 - $257,998.00
$257,998.00
$257,998.00 - $257,998.00
$257,998.00

✓ FREE Ground Shipping

✓ Backed by manufacturer's standard warranty

✓ Ships from distribution facility in Whites Creek, TN

✓ Built for commercial & jobsite use

ESTIMATED DELIVERY TIME

Order today for delivery in 7-10 business days.

Request a quote

The CG3R Pavement Groover is a rugged ride-on machine purpose-built for precision pavement grooving on concrete and asphalt surfaces. Ideal for demanding infrastructure projects, its powerful performance, operator-friendly controls, and integrated slurry management system make it a standout in professional surface preparation.

FEATURES

  • Riding unit for grooving long areas of pavement
  • Compact and highly maneuverable
  • Robust construction and heavy duty design
  • On-board slurry vacuum & discharge system
  • 30” (77.2cm) grooving width
  • Uses standard 5” (12.7cm) bore 12” (30.48cm) diameter blades
  • Joystick speed control with integral raise/lower switch
  • Full compliment of work lights for night jobs

SPECIFICATIONS

Engine Deutz Turbo Diesel 2.9L, 74.9HP Tier 4 Final, EU Stage V
Dimensions Length 87-5/8" (222.57cm), Width 54-1/8" (137.48cm), Height 87-7/8" (223.2cm)
Weight 3200 lbs. (1451.5Kg) Estimated
Fuel Capacity 25.85 Gallons (97.85 liters)
Blade Shaft 5" (12.7cm) Diameter with 4-draw Bolts
Blade Diameter 12" (30.48cm)
Cutting Width 30" (76.2cm)
Blade Shaft RPM 13000 Maximum
Blade Shaft Drive Belt Driven
Hydraulics Electric/Hydraulic Blade Raise/Lower
Ground Drive Joystick-controlled Belt Driven Closed Looped Hydrostatic Pump
Vacuum System Hydraulically-driven Fan and Self Priming Contrifugal Slurry Pump
Electrical 12 Volt
Speed Up to 250 Feet Per MInute Forward/Reverse
Machine Controls Power Steering, Joystick Ground Drive Control with Integral Head Raise/Lower Switch



Part Number: CG3R, Catalog # 99357
