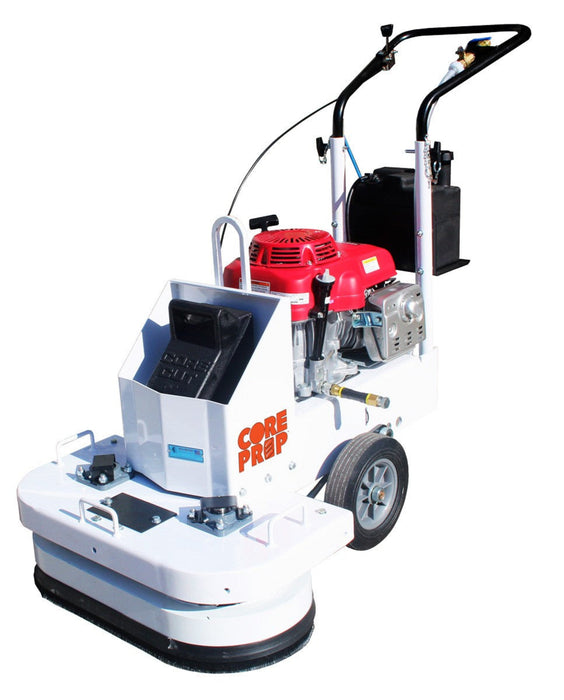

Diamond Products CPG200 dual head floor grinder for core prep, showing the heavy-duty grinding heads and durable construction.

Diamond Products CPG200 Dual Head Floor Grinder

SKU 42802
by Diamond Products
$9,716.00 - $12,270.00
$11,886.00
$9,716.00 - $12,270.00
$11,886.00

✓ FREE Ground Shipping

✓ Backed by manufacturer's standard warranty

✓ Ships from distribution facility in Whites Creek, TN

✓ Built for commercial & jobsite use

ESTIMATED DELIVERY TIME

Order today for delivery in 7-10 business days.

Request a quote

The CPG200 Dual Head Floor Grinder is a heavy-duty dual-head machine built for large surface grinding and finishing tasks. Whether you're removing coatings, leveling thicker surfaces, or prepping floors for polishing, this machine offers wide coverage, solid power, and option flexibility. With two heads, you get a full 24-inch working width, combined with different power source variants (gas, electric, hydraulic), sturdy frame, and various operator control features designed to minimize fatigue and maximize results.

FEATURES & BENEFITS

  • Remote throttle
  • 2” dust port opening
  • Multiple grease point
  • 1/4” thick steel box frame
  • Water hose connection
  • Adjustable operator handles
  • Multiple lifting handles and single lifting point
  • Dual head allows large 24” grinding area with two 12” grinding heads
  • 4 rear axle positions and swivel axle
  • Matches the height of the grinding head being used and allows for rapid change in weight distribution during grinding or transport
  • Can use diamond grinding head, carbide blocks or grinding stones

* Must specify 115V or 230V when ordering Horsepower as rated by the engine manufacturer

SPECIFICATIONS

Motor/Engine Power Engine/Motor Make Power Source Head Capacity Part Number Catalog Number
7.5 HP-3PH, 230V Baldor® Electric (2)10”/(2)12” 5801237A 42802
10.2 HP Honda® GXV390 Gas (2)10”/(2)12” 5801238 42874
2 HP-1PH, 115V or 230V Baldor® Electric (2)10”/(2)12” 5801235 42765
7.5 HP-1PH, 230V Baldor® Electric (2)10”/(2)12” 5801236 42793
7.5 HP-3PH, 460V Baldor® Electric (2)10”/(2)12” 5801237B 42827



SHIPPING & SUPPORT

Our products ship from our distribution partner, MTA Distributors, located in Whites Creek, Tennessee. Orders typically ship within 3–5 business days from the date of purchase.

Standard delivery transit time is approximately 7–10 business days from the order date, depending on destination and carrier.

Once your order has shipped, tracking information will be sent to the email address provided at checkout. You may also track the status of your shipment on our Order Tracking page. Please note that estimated delivery dates will not be available until your order has shipped and a tracking number has been issued.

Have questions or need assistance? Contact us at support@trackram.com or call (307) 312-9468.

For additional details, please review our Shipping Policy.
