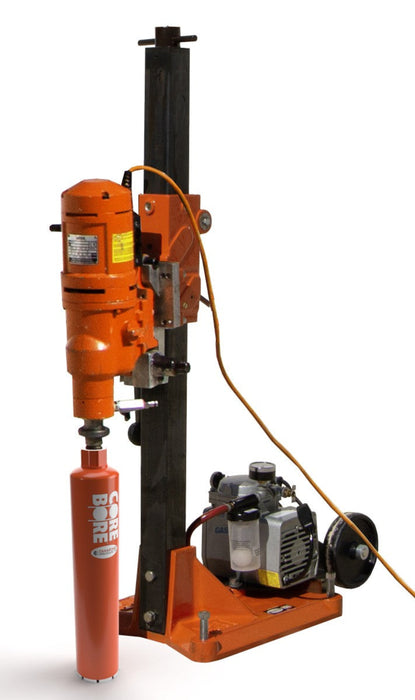

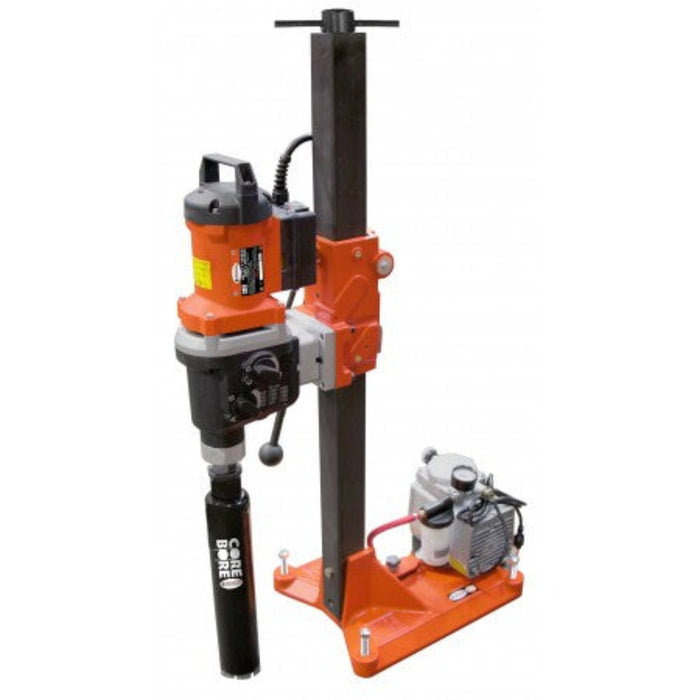

Diamond Products M-1 Complete Core Rig with sturdy metal frame and adjustable components for core drilling applications.

Diamond Products M-1 Complete Core Rig

SKU 39195
by Diamond Products
$2,936.00 - $5,915.00
$2,936.00
$2,936.00 - $5,915.00
$2,936.00

✓ FREE Ground Shipping

✓ Backed by manufacturer's standard warranty

✓ Ships from distribution facility in Whites Creek, TN

✓ Built for commercial & jobsite use

ESTIMATED DELIVERY TIME

Order today for delivery in 7-10 business days.

Request a quote

The M-1 Complete Core Rig is Diamond Products’ most popular coring system for general contractor use—a compact, versatile, and powerful rig designed for precision coring up to 14" diameter (10" standard, extendable to 14" with spacers). Built for mobility and adaptability, it’s your reliable all-in-one solution for efficient concrete coring.

FEATURES & BENEFITS

  • 2-1/2” square column (mast) with black oxidized finish
  • 6” wheels for easy mobility
  • Dual switch/outlet control panel with amp meter (except for CB700 models with LED amp meter)
  • Vacuum pump for quick mounting to flat surface without drilling an anchor hole (included with combination rig)
  • 4 leveling screws on the base
  • Up to 14” bit capacity with one spacer block
  • Slide handle allows for drilling in tight areas
  • Combination base is a quick change over from vacuum to anchor base
  • Ceiling jack helps keep the rig in place as a backup for anchoring or vacuuming the base down (used with a brace piece-2 x 4 or other material)

SPECIFICATIONS

Engine/Motor Model Motor/Engine Power Engine/Motor Make Motor RPM Rig Type Part Number Catalog Number
CB744 25 amp, 110 volt Core Bore 385/530/975/1340 Complete rig with add-on vacuum base and vacuum pump 4245104 81050
DK22 23 amp, 110 volt Weka 300/640/960 Complete rig with add-on vacuum base and vacuum pump 4245053 47173
DK22S 23 amp, 110 volt Weka 420/880/1300 Complete rig with add-on vacuum base and vacuum pump 4245046 50138
CB744 25 amp, 110 volt Core Bore 385/530/975/1340 Complete rig without vacuum pump 4245111 81053
DK22 23 amp, 110 volt Weka 300/640/960 Complete rig without vacuum pump 4245077 71962
DK22S 23 amp, 110 volt Weka 420/880/1300 Complete rig without vacuum pump 4245078 72583

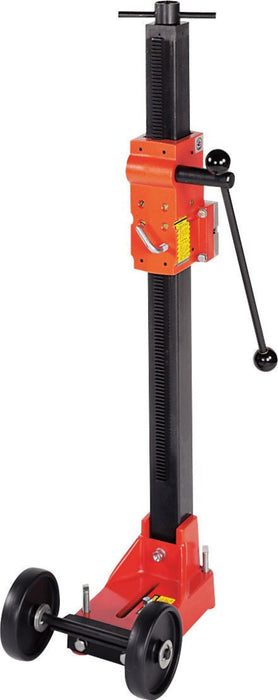

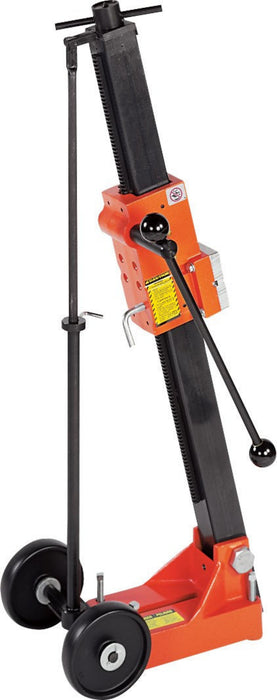

CB744 25 amp, 110 volt Core Bore 385/530/975/1340 Anchor rig 4245103 81054
DK22 23 amp, 110 volt Weka 300/640/960 Anchor rig 4245008 52339
DK22S 23 amp, 110 volt Weka 420/880/1300 Anchor rig 4245011 66795
CB733 20 amp, 115 volt Core Bore 550/1000/1600 Complete rig with add-on vacuum base and vacuum pump 4245112 85327
CB733 20 amp, 115 volt Core Bore 550/1000/1600 Anchor rig 4245114 39195



SHIPPING & SUPPORT

Our products ship from our distribution partner, MTA Distributors, located in Whites Creek, Tennessee. Orders typically ship within 3–5 business days from the date of purchase.

Standard delivery transit time is approximately 7–10 business days from the order date, depending on destination and carrier.

Once your order has shipped, tracking information will be sent to the email address provided at checkout. You may also track the status of your shipment on our Order Tracking page. Please note that estimated delivery dates will not be available until your order has shipped and a tracking number has been issued.

Have questions or need assistance? Contact us at support@trackram.com or call (307) 312-9468.

For additional details, please review our Shipping Policy.

ARE YOU A BUSINESS?

Volume pricing, procurement support, and dedicated account management for municipalities, contractors, and developers.

APPLY NOW

Compare products

{"one"=>"Select 2 or 3 items to compare", "other"=>"{{ count }} of 3 items selected"}

Select first item to compare

Select second item to compare

Select third item to compare

Compare
QUICK FACTS

The M-1 Complete Core Rig is Diamond Products’ most popular coring system for general contractor use—a compact, versatile, and powerful rig designed for precision coring up to 14" diameter (10" standard, extendable to 14" with spacers). Built for mobility and adaptability, it’s your reliable all-in-one solution for efficient concrete coring.

FEATURES & BENEFITS

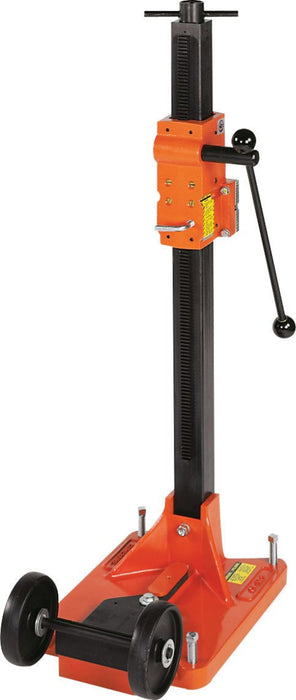

  • 2-1/2” square column (mast) with black oxidized finish
  • 6” wheels for easy mobility
  • Dual switch/outlet control panel with amp meter (except for CB700 models with LED amp meter)

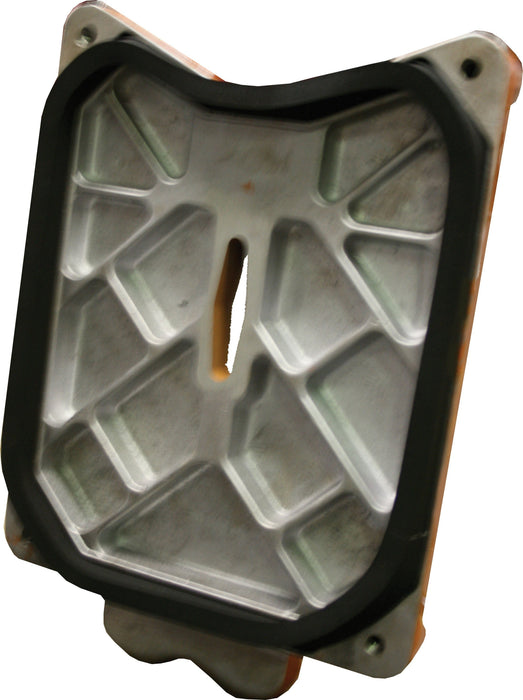

  • Vacuum pump for quick mounting to flat surface without drilling an anchor hole (included with combination rig)
