Diamond Products M-4 Multi-Purpose Core Rigs

Diamond Products M-4 Multi-Purpose Core Rigs

SKU 00020
by Diamond Products
$3,697.00 - $5,060.00
$4,460.00
$3,697.00 - $5,060.00
$4,460.00

AUTHORIZED DEALER

✓ Full Manufacturer Warranty

✓ FREE Ground Shipping

✓ No Sales Tax Outside Wyoming

Options: 14 Amp Weka DK12 (w/ vacuum pump)

ESTIMATED DELIVERY TIME

Order today for delivery in 7-10 business days.

Request a quote

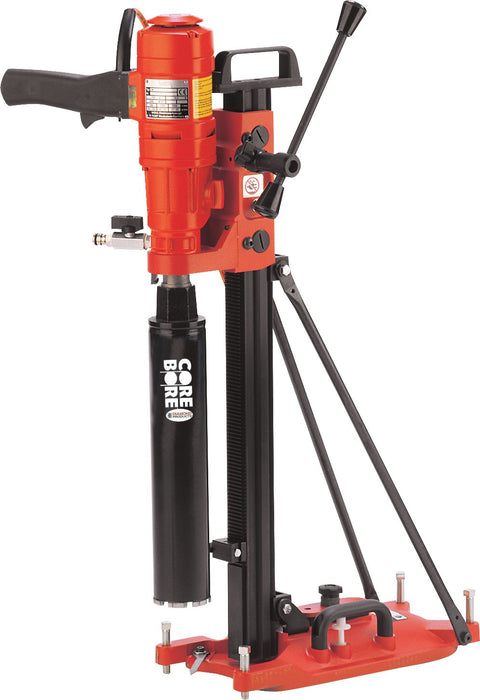

The M-4 Multi-Purpose Core Rig from Diamond Products is a highly versatile drilling system designed to deliver dependable performance across a wide range of concrete, masonry, and infrastructure applications. Whether you're a general, electrical, mechanical, or plumbing contractor, this rig meets the demands of both hand-held and stand-mounted coring. It supports large core bits when rigidly secured, yet remains light enough for portable, hand-held work. Built with durable materials and thoughtful ergonomics, this rig balances power, precision, and flexibility for both basic drilling tasks and more demanding angled, wet, or dry coring jobs.

6” Standard Bit Capacity, 3” (hand held)
Great Versatility in a Light Weight Rig

FEATURES & BENEFITS

  • Great for the general contractor (basic drilling) or plumber (hand-held drilling), electrical or mechanical contractor
  • Reversible slide handle (for use on left or right side)
  • High strength, hard anodized 1-5/8” x 2” aluminum column
  • Top carrying handle
  • Quick release motor mount
  • Carriage lock
  • Leveling bolts on all model bases
  • Hand-held option
  • 4 Leveling screws on base
  • Light weight and portable

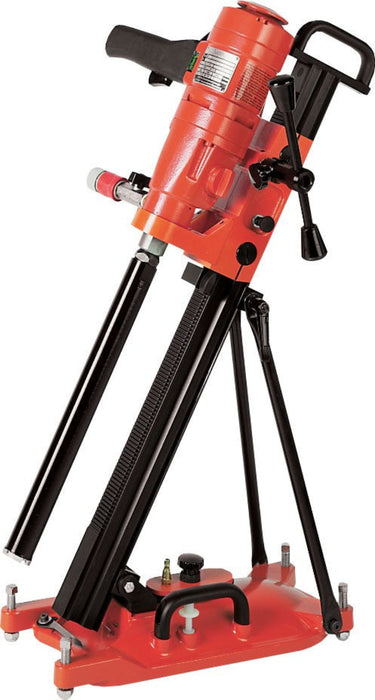

  • Combo bases have angle braces for drilling up to 45o
  • 4 adjustable slide bearings provide superior carriage rigidity
  • Quick change over from vacuum to anchor base

SPECIFICATIONS

Engine/Motor Model Motor/Engine Power Engine/Motor Make Motor RPM Rig Type Part Number Catalog Number
DK12 14 amp, 115 volt Weka 580/1400/2900 Complete rig with add-on vacuum base and vacuum pump 4240001 00020
DK13 14 amp, 115 volt Weka 580/1400/2900 Complete rig with add-on vacuum base and vacuum pump 4240044 51033
DK16 19 amp, 110 volt Weka 580/1400/2900 Complete rig with add-on vacuum base and vacuum pump 4240054 98393
DK12 7 Amp Weka Dk12 (230V) Weka 580/1400/2900 Complete rig with add-on vacuum base and vacuum pump 4240009 60114
DK12 14 amp, 115 volt Weka 580/1400/2900 Complete rig without vacuum pump 4240046 66489
DK16 19 amp, 110 volt Weka 580/1400/2900 Complete rig without vacuum pump 4240057 08871
DK12 7 Amp Weka Dk12 (230V) Weka 580/1400/2900 Complete rig without vacuum pump 4240053 10169
DK12 14 amp, 115 volt Weka 580/1400/2900 Anchor rig 4240010 46871
DK13 14 amp, 115 volt Weka 580/1400/2900 Anchor rig 4240045 61221
DK16 19 amp, 110 volt Weka 580/1400/2900 Anchor rig 4240055 98683
4004 20 amp, 115 volt Milwaukee 300/600 Anchor rig 4240013 69636
4096 20 amp, 115 volt Milwaukee 450/900 Anchor rig 4240014 52505
4005 20 amp, 115 volt Milwaukee 600/1200 Anchor rig 4240015 58320
DK12 7 Amp Weka Dk12 (230V) Weka 580/1400/2900 Anchor rig 4240016 87938
DK12 14 amp, 115 volt Weka 580/1400/2900 Swivel rig 4240030 46983
DK16 19 amp, 110 volt Weka 580/1400/2900 Swivel rig 4240056 98684
4097-20 20 amp, 115 volt Milwaukee 500/1000 Swivel rig 4240031 80917
4004 20 amp, 115 volt Milwaukee 300/600 Swivel rig 4240033 10170
4096 20 amp, 115 volt Milwaukee 450/900 Swivel rig 4240034 68389
4005 20 amp, 115 volt Milwaukee 600/1200 Swivel rig 4240035 93513
DK12 7 Amp Weka Dk12 (230V) Weka 580/1400/2900 Swivel rig 4240036 76985
DK13 14 amp, 115 volt Weka 580/1400/2900 Complete rig without vacuum pump 4240047 66975



SHIPPING & SUPPORT

This product ships directly from Diamond Products U.S. manufacturing facility. Standard lead time is 5–7 business days to ship.

Have questions or need help choosing the right size or accessories?
Contact us at sales@trackram.com or call (307) 312-9468  — our team is here to help.
