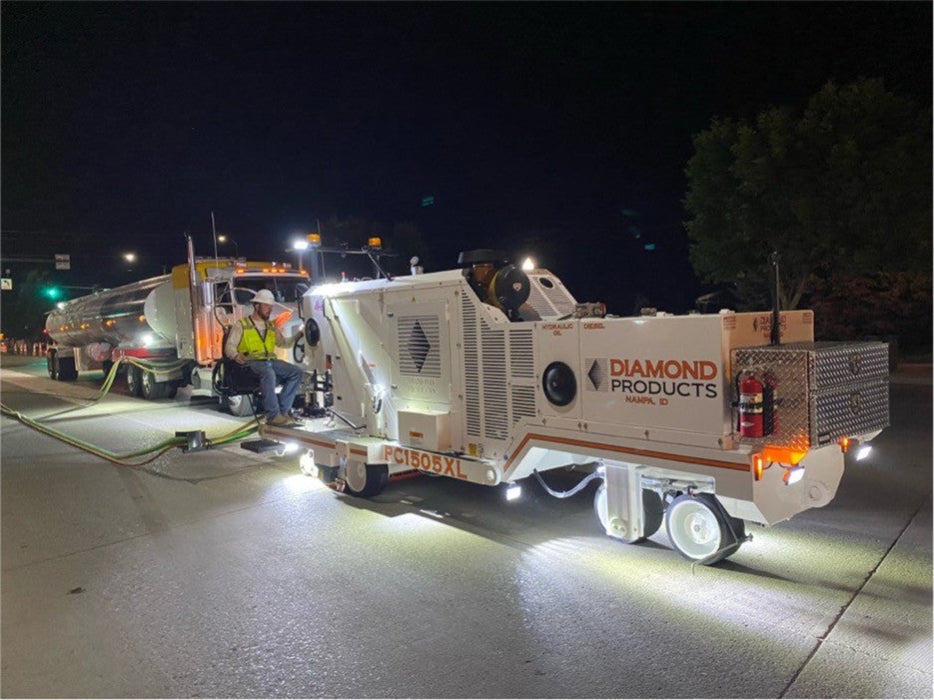

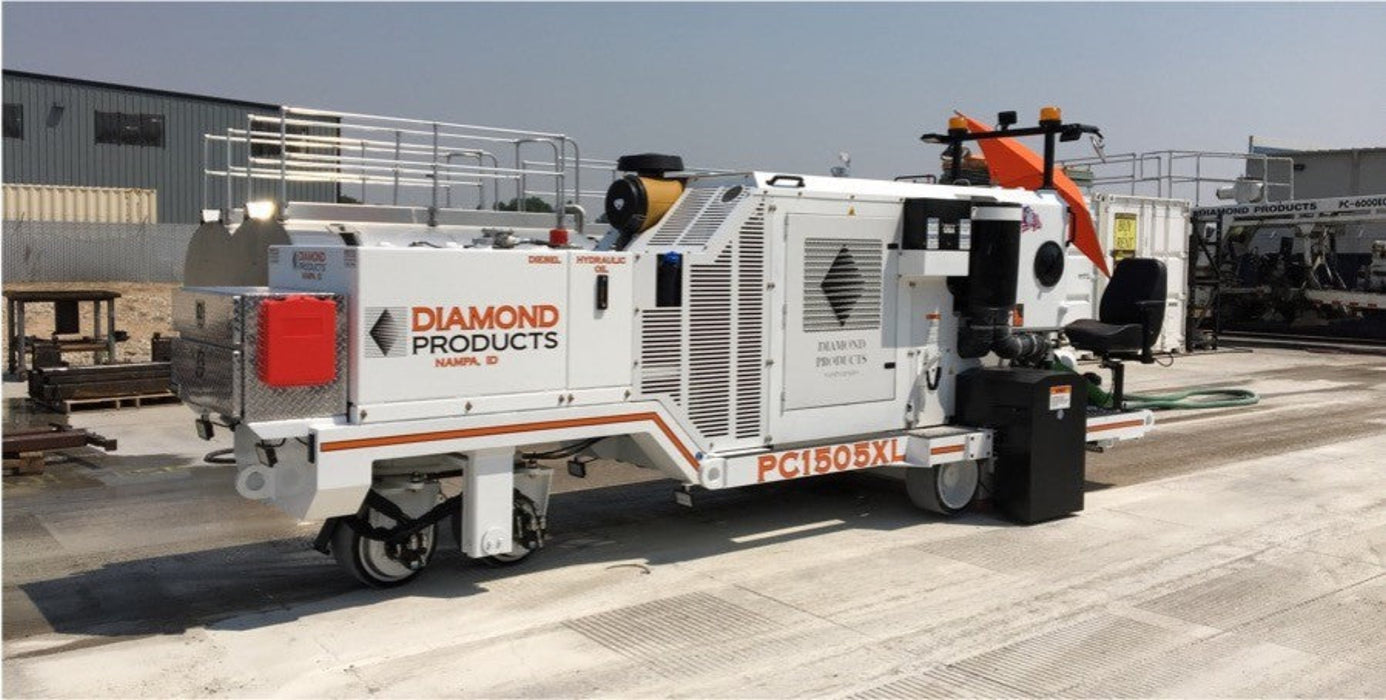

Diamond Products PC1505XL pavement grinder and groover machine for surface grinding and grooving projects.

Diamond Products PC1505XL Pavement Grinder & Groover

SKU 103369
by Diamond Products
$600,000.00 - $600,000.00
$600,000.00
$600,000.00 - $600,000.00
$600,000.00

✓ FREE Ground Shipping

✓ Backed by manufacturer's standard warranty

✓ Ships from distribution facility in Whites Creek, TN

✓ Built for commercial & jobsite use

ESTIMATED DELIVERY TIME

Order today for delivery in 7-10 business days.

Request a quote

The PC1505XL Pavement Grinder & Groover is a versatile, high-performance machine engineered for heavy-duty profiling and grooving of concrete and asphalt surfaces. Designed for professional contractors, this rugged equipment combines power, precision, and operator convenience—all while delivering exceptional productivity across demanding job sites.

FEATURES

  • High production grinding/profiling and grooving of concrete and asphalt pavements.
  • Centrally located operator station allows for either left or right side operation.
  • OPTIONAL: Head temperature monitoring system (HTMS) with temperature display. Displays in fahrenheit or centigrade.
  • Hydraulically adjustable Raise/Lower profile/depth control wheels.
  • Equipped with operator 360 vision system with four (4) cameras and display screen.
  • Capable of grinding to within 10” (25.4cm) of a vertical wall.
  • Easy to operate and comfortable to run.
  • Equipped with odometer that measures total footage (meters) ground and has a reset-able daily production odometer and feet (meters) per minute indicator.
  • 5” (12.7cm) diameter blade shaft for use with 12” (30.48cm) diameter blades. Blades for grinding or grooving can be stacked up to 50” (127cm) cutting width.
  • Front bogey assembly is adjustable for an effective wheel base of 11’6”(3.505m) to 13’5”(4.114) Note: GRINDING/PROFILING EFFECTIVE WHEELBASE is the distance from the center of the front bogey assembly to the center of the rear Profile/Depth Control wheel assemblies located behind the cutting head. GROOVING WHEELBASE is the distance from the center of the front bogey assembly to the center of the cutting head.
  • On board vacuum system with diaphragm slurry pump and silencer.
  • Depth control wheels are side to side adjustable for accurate cut matching.
  • Manually adjusted grooving depth control wheels attach to mainframe on blade-shaft center line for accurate depth control.
  • Excellent for airport and longitudinal highway grooving

SPECIFICATIONS

Engines: Caterpillar® 7.1Liter 302HP (193.8kw)@ 2100rpm, Turbo-charged/inter-cooled, electronically controlled diesel engine. Engine Meets U.S. EPA Tier 4 Final and EU Stage V Emission Standards and meets European Machinery Directive 2006/42/EC, Service free DPF for the emissions life of the engine.  Fuel Consumption 10.8gph (40.9L/HR)
Dimensions: Length 23ft (7.01M), Width: 8ft 5in (2.56M) with grooving legs installed., Height 10ft (3.04M), Weight: 24,500lbs (10.6597kg)
Fuel Capacity: 150 gallons (567L)
Blade shaft: 5in diameter (12.7cm) w/2-keyways
Blade Diameter: 12in (30.48cm)
Cutting width: 50in (127cm)
Blade shaft RPM: 1400 rpm low range, 1900 rpm high range
Blade shaft Drive: Engine power is transmitted through a manually operated PTO clutch to a right angle drive gearbox which drives a single Poly Chain GT Carbon belt.
Ground Drive: Closed loop Hydrostatic pump drives two wheel motor assemblies. Wheel motor assemblies have integral brakes and two speed function.
Travel Speed: 0-200fpm

Vacuum System: Belt driven positive displacement blower with demister and inlet filters. 3 inch (7.62cm) slurry discharge pump.

Lighting: Full complement of LED work lights, Safety Beacons and Flashers.

Machine Controls: Forward/Reverse electronic joystick with neutral lock and integral raise/lower switch. Power steering, water on/off, 2-Speed, Brake on/off, adjustable operators seat and removable foot platform, water pressure gauge and alarm.
Instrumentation: Digital engine panel and Digital Odometer/Hydraulic Systems Pressure Monitoring Panel.

Part # PC1505XL, Catalog # 103369
