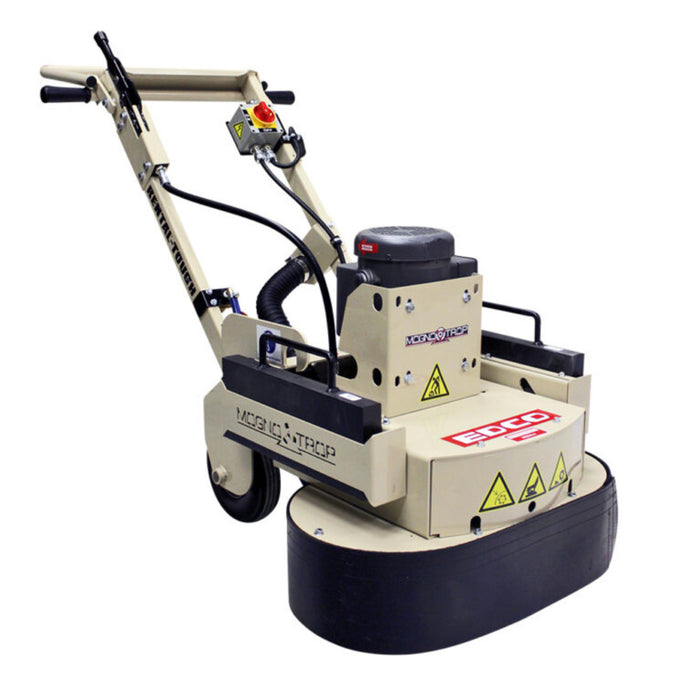

EDCO Magna-Trap® Dual-Disc 230V Electric Floor Grinder

A powerful, precision dual-disc grinder engineered for heavy duty first-pass concrete surface preparation under electric power. With counter-rotating discs, leveling adjustments, and a wide working width, this 230V model enables high productivity in environments where electric power is preferred or required.

FEATURES

Model: 2EC-NG

230 Volt Single Phase, 3HP motor

Magna-Trap® Floor Grinders combine leveling systems, better dust control, and accessories to create superior surface preparation machines.

• GRIND WEDGE-LESS: The need for wooden wedges goes away with EDCO’s NEW Magna-Trap® Slide-On Tooling.
• GRIND LEVEL: Using EDCO’s exclusive Leveling System you can adjust the machine’s height, use a wide range of accessories, and truly grind level. Level grinding is quicker, smoother, easier on the operator , and increases accessory life.
• VELCRO DUST SHROUD: This new heavy-duty Velcro Dust Shroud makes dust prevention easier. Simply readjust the shroud according to the height of the accessory being used.
• Laser-Cut Weight Tray: This built-in weight tray accepts up to 80lbs. of extra weight!
• Multi-Vac port for use with 2″ or 3″ vacuum hose
• 22″ working width will grind approximately 400-500 sq.ft. per hour at 1/32″ with EDCO Dyma-Serts
• Gas & electric power options available
• Includes 2 magnetic multi-accessory discs, which accept Dyma-Serts, Strip-Serts and all other Magna-Trap® grinder accessories
• Counter-rotating discs prevent machine from pulling side to side and give operator greater control
• 6 grinding accessories required per loading

SPECIFICATIONS

SHIPPING & SUPPORT

This product ships directly from EDCO U.S. manufacturing facility. Standard lead time is 5–7 business days to ship.

Have questions or need help choosing the right size or accessories?
Contact us at sales@trackram.com or call (307) 312-9468  — our team is here to help.
