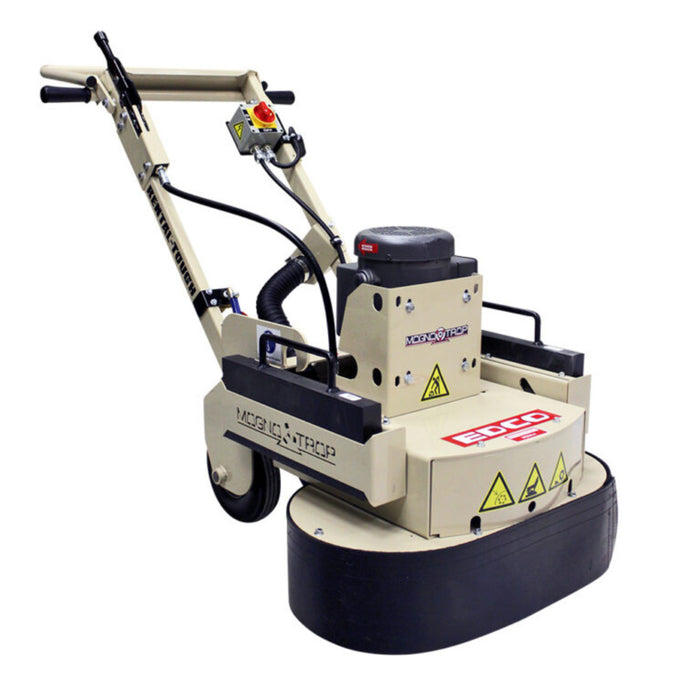

EDCO Magna-Trap® Dual-Disc 115V Electric Floor Grinder

SKU 59200
Original price $7,506.00 - Original price $7,506.00
Original price
$7,506.00
$7,506.00 - $7,506.00
Current price $7,506.00
Availability:
In stock

Standard shipping

Estimated delivery time: 7-10 days

Specifications

Use this text to share information about your product.

Request a quote

Designed for heavy-duty first-pass surface prep, the Magna-Trap Dual-Disc 115V model brings the performance and features of EDCO’s dual-disc grinders into environments where 115V power is available. With a wide working width, advanced dust control, and precision leveling, this machine empowers contractors to tackle coatings, overlays, and surface leveling operations efficiently.

FEATURES

Model: 2EC-NG

115 Volt Single Phase, 1.5 Hp Motor

Magna-Trap® Floor Grinders combine leveling systems, better dust control, and accessories to create superior surface preparation machines.

  • GRIND WEDGE-LESS: The need for wooden wedges goes away with EDCO’s Magna-Trap® Slide-On Tooling.
  • GRIND LEVEL: Using EDCO’s exclusive Leveling System you can adjust the machine’s height, use a wide range of accessories, and truly grind level. Level grinding is quicker, smoother, easier on the operator, and increases accessory life.
  • VELCRO DUST SHROUD: This new heavy-duty Velcro Dust Shroud makes dust prevention easier. Simply readjust the shroud according to the height of the accessory being used.
  • Laser-Cut Weight Tray: This built-in weight tray accepts up to 80lbs. of extra weight!
  • Multi-Vac port for use with 2″ or 3″ vacuum hose
  • 22″ working width will grind approximately 400-500 sq.ft. per hour at 1/32″ with EDCO Dyma-Serts
  • Gas & electric power options available
  • Includes 2 magnetic multi-accessory discs, which accept Dyma-Serts, Strip-Serts and all other Magna-Trap® grinder accessories
  • Counter-rotating discs prevent machine from pulling side to side and give operator greater control
  • 6 grinding accessories required per loading

SPECIFICATIONS

Specification Detail
Model # 2EC-NG
Part # 59200
Engine / Motor Electric
Phase Single-Phase
Amps 16 A (115 V)
RPMs 231 rpm
Length 46 in (1,168 mm)
Width 27 in (686 mm)
Height 39 in (991 mm)
Weight 260 lbs (118 kg)
Max Cord Length 50 ft, 10 Gauge



SHIPPING & SUPPORT

This product ships directly from EDCO U.S. manufacturing facility. Standard lead time is 5–7 business days to ship.

Have questions or need help choosing the right size or accessories?
Contact us at sales@trackram.com or call (307) 312-9468  — our team is here to help.
