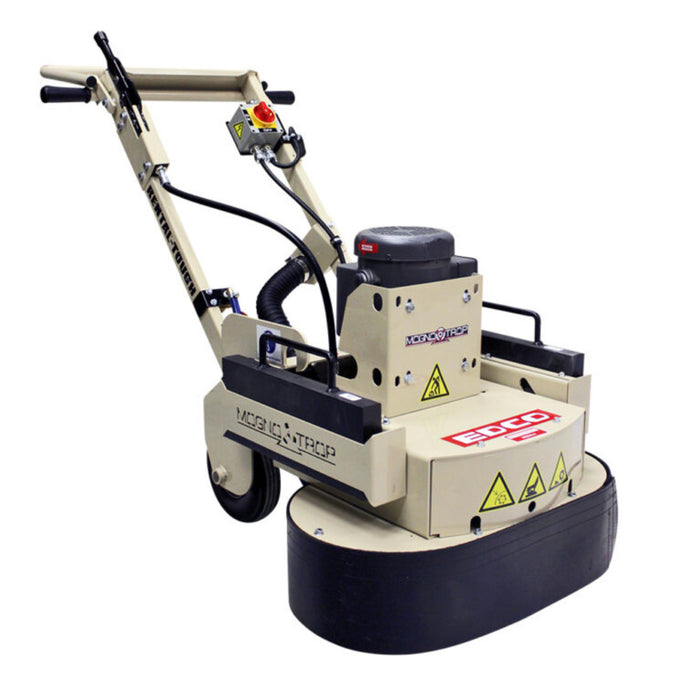

EDCO Magna-Trap® Dual-Disc 230V electric floor grinder with two grinding discs on a concrete surface.

EDCO Magna-Trap® Dual-Disc 230V Electric Floor Grinder

SKU 59600
by EDCO
$7,927.00 - $7,927.00
$7,927.00
$7,927.00 - $7,927.00
$7,927.00

✓ FREE Ground Shipping

✓ Backed by manufacturer's standard warranty

✓ Ships from distribution facility in Whites Creek, TN

✓ Built for commercial & jobsite use

ESTIMATED DELIVERY TIME

Order today for delivery in 7-10 business days.

Request a quote

A powerful, precision dual-disc grinder engineered for heavy duty first-pass concrete surface preparation under electric power. With counter-rotating discs, leveling adjustments, and a wide working width, this 230V model enables high productivity in environments where electric power is preferred or required.

FEATURES

Model: 2EC-NG

230 Volt Single Phase, 3HP motor

Magna-Trap® Floor Grinders combine leveling systems, better dust control, and accessories to create superior surface preparation machines.

  • GRIND WEDGE-LESS: The need for wooden wedges goes away with EDCO’s NEW Magna-Trap® Slide-On Tooling.
  • GRIND LEVEL: Using EDCO’s exclusive Leveling System you can adjust the machine’s height, use a wide range of accessories, and truly grind level. Level grinding is quicker, smoother, easier on the operator , and increases accessory life.
  • VELCRO DUST SHROUD: This new heavy-duty Velcro Dust Shroud makes dust prevention easier. Simply readjust the shroud according to the height of the accessory being used.
  • Laser-Cut Weight Tray: This built-in weight tray accepts up to 80lbs. of extra weight!
  • Multi-Vac port for use with 2″ or 3″ vacuum hose
  • 22″ working width will grind approximately 400-500 sq.ft. per hour at 1/32″ with EDCO Dyma-Serts
  • Gas & electric power options available
  • Includes 2 magnetic multi-accessory discs, which accept Dyma-Serts, Strip-Serts and all other Magna-Trap® grinder accessories
  • Counter-rotating discs prevent machine from pulling side to side and give operator greater control
  • 6 grinding accessories required per loading

SPECIFICATIONS

Specification Details
Model # 2EC-NG
Part # 59600
Engine/Motor Electric
Phase Single-Phase
AMPs 16
RPMs 231
Length (in) 46
Width (in) 27
Height (in) 39
Weight (lbs) 260
Max Cord Length 50 ft, 10 Gauge
