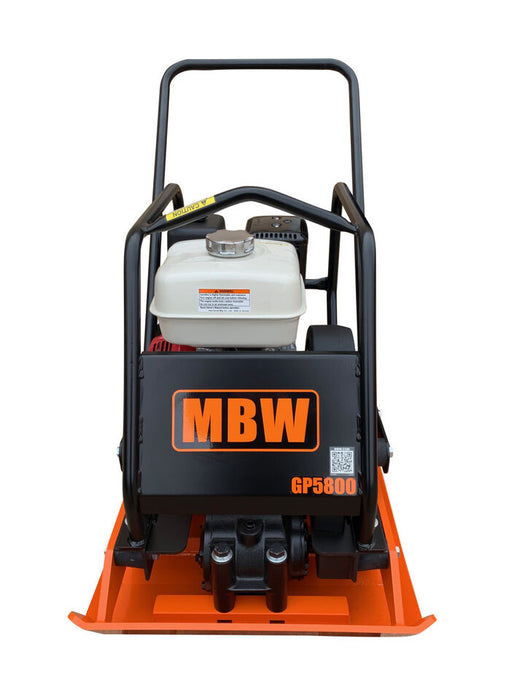

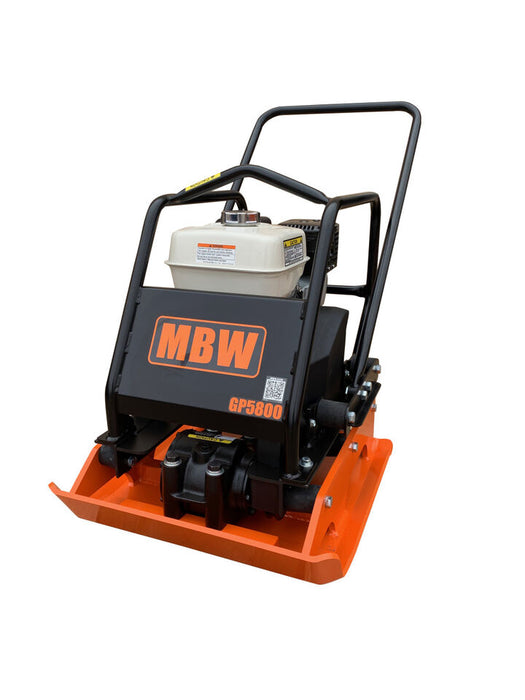

MBW GP5800 heavy-duty vibratory plate compactor with Honda GX270 engine, 288lb, used for soil and pavement compaction.

MBW GP5800 Heavy Duty Vibratory Plate

SKU GP5800
by MBW
$3,717.60 - $3,717.60
$3,717.60
$3,717.60 - $3,717.60
$3,717.60

✓ FREE Ground Shipping

✓ Backed by manufacturer's standard warranty

✓ Ships from distribution facility in Whites Creek, TN

✓ Built for commercial & jobsite use

ESTIMATED DELIVERY TIME

Order today for delivery in 7-10 business days.

Request a quote

The GP5800 is an upgrade of model GP5500. GP5800 maintains its predecessor’s outstanding performance characteristics while improving the design in terms of ergonomics, ease of service and product life expectations. Among these are a removable, easily serviced exciter assembly, superior suspension for improved engine isolation, lower hand/arm vibration and standard protective cage surrounding engine. This high production compactor travels up to 130 ft/min, generates .94 inch amplitude for deep penetration of backfill materials and is unmatched on mid-sized to large commercial and infrastructure applications.

FEATURES & BENEFITS

  • Honda GX270 engine
  • Plate size: 23 x 24 In.
  • Operating weight: 288 lbs.
  • Travel speed: up to 130 ft /min
  • Removable, easily serviced exciter assembly

SPECIFICATIONS

Specification Value
Plate Size (W × L) 23 × 24 in (58 × 61 cm)
Operating Weight 289 lb (131 kg)
Engine Option Honda GX270
Amplitude 0.094 in (2.39 mm)
Centrifugal Force 5,800 lb (≈ 25.8 kN)
Exciter Speed 4,800 vpm
Compaction Depth Up to 20 in (≈ 51 cm)
Travel Speed Up to 130 ft/min (≈ 39.6 m/min)
Compaction Area 14,950 ft²/hr (≈ 1,389 m²/hr)



SHIPPING & SUPPORT

Our products ship from our distribution partner, MTA Distributors, located in Whites Creek, Tennessee. Orders typically ship within 3–5 business days from the date of purchase.

Standard delivery transit time is approximately 7–10 business days from the order date, depending on destination and carrier.

Once your order has shipped, tracking information will be sent to the email address provided at checkout. You may also track the status of your shipment on our Order Tracking page. Please note that estimated delivery dates will not be available until your order has shipped and a tracking number has been issued.

Have questions or need assistance? Contact us at support@trackram.com or call (307) 312-9468.

For additional details, please review our Shipping Policy.
